Rus on the tower

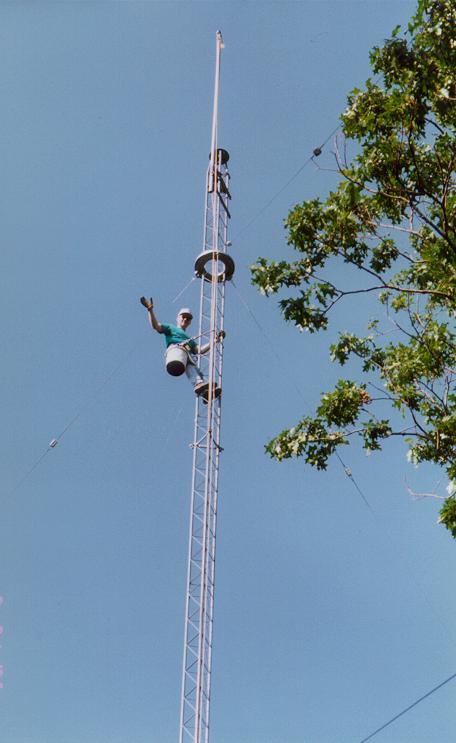

The 103-foot rotating Rohn 25 tower, just after installation was completed in July 1996. This shot clearly shows the guy ring at 95 feet; the tower rotates inside this ring from the 65-foot level on up. The hardware for rotating the tower came from Rotating Tower Systems (K5IU), and is the best there is. Others I know who use this hardware include K1KI, N8RA, K2DH and N2WK, and we've all been very pleased with it. (Photo by Norm Paine)

Rus on the tower. K2UA (then NJ2L) on the rotating tower in August 1997. Some VHF/UHF stuff is visible below me in this photo. The 40-2CD boom is at 96 feet, just above the guy ring. (Photo by K1TO)

The rotating tower before the changes.

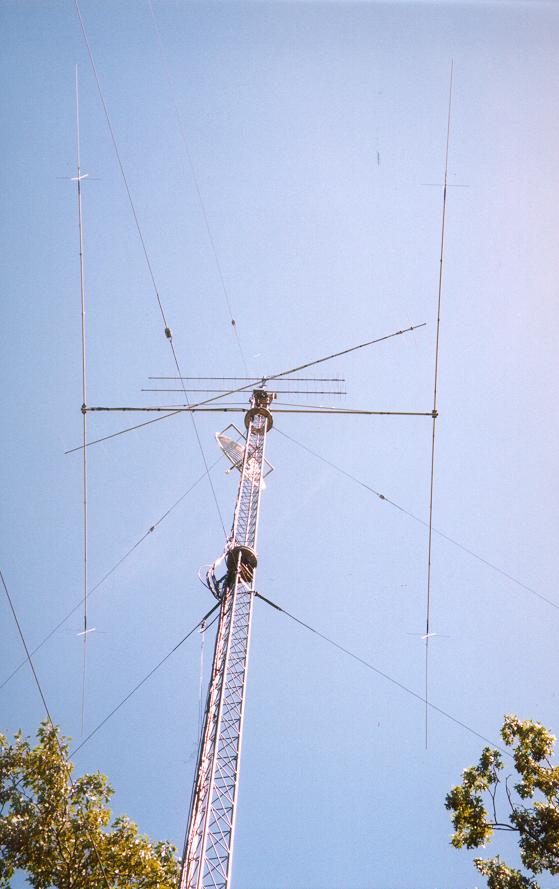

In July and August of 1999, the rotating tower had a major refit. The four-element tribander came down from the top, as did the wire array for 80 meters and a bunch of VHF/UHF antennas, to make room for a new stack of 10-meter beams at 103/76/50/25 feet. This photo shows the tower just before the 10-meter beams went up; the only antennas shown here are the W6NL-ized Cushcraft 40-2CD at 96 feet, a pair of K1FO 22-element 432-MHz Yagis at 104/109 feet, and a KLM 16LBX for 144 MHz at 110 feet.

Ther rotating tower

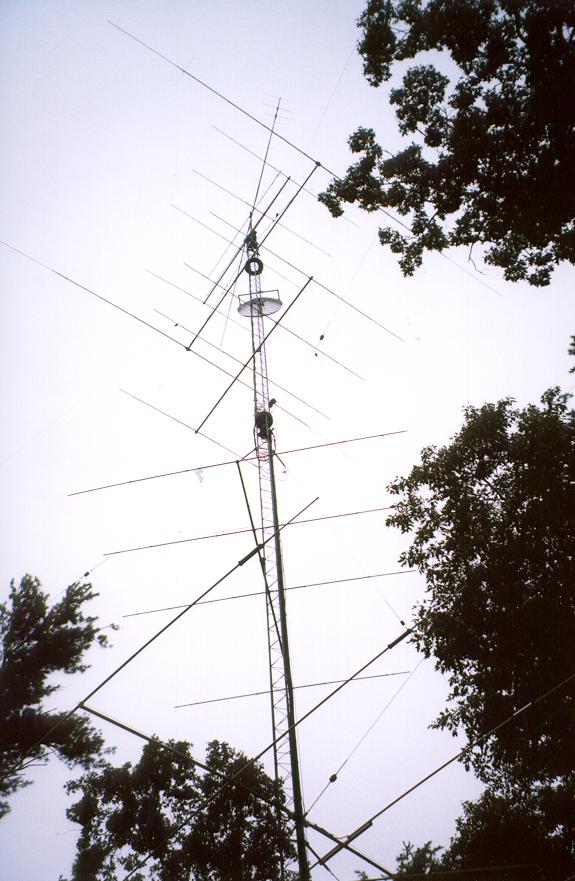

The rotating tower in August 1999, after the four 10-meter beams were installed at 103/76/50/25 feet. These are slightly modified Cushcraft 10-4CDs, which have less bandwidth but a *much* better F/B than the stock design in the stacked configuration. The top two 10-meter antennas rotate together and are pointed north; the bottom two are fixed on Europe. The bottom 10-meter beam (at 25 feet) is not visible in this photo, but the tribander, a 4-element Mosley, is fixed west and is visible at the 33-foot level, just above the bottom set of guy wires.

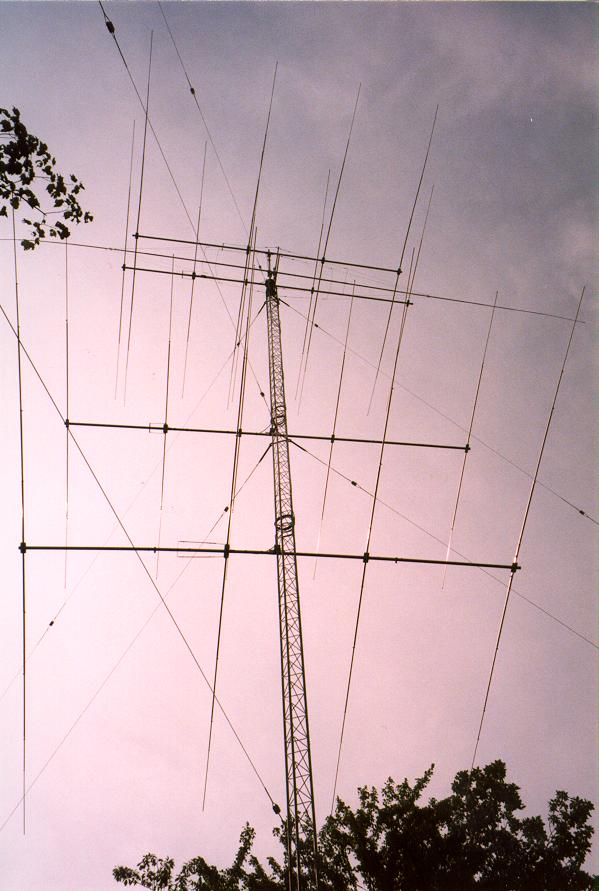

The K2UA Back Tower New in December 1998, the back tower is 92 feet high at the top plate. This tower is 150 feet west of the rotating tower, and 325 feet west of the house. This tower supports a pair of Hy-Gain 204BA 20-meter beams at 102/52 feet, a pair of Hy-Gain 155CA 15-meter Yagis at 92/65 feet, and a Force 12 EF-180A 80-meter rotatable dipole at 95 feet. The bottom antennas in the stacks are fixed on Europe, and the upper antennas rotate. Force 12 recommends mounting the rotary dipole parallel to the boom of any close-by 20-meter antennas to keep the dipole from degrading the 20-meter stack performance.

The K2UA Back Tower

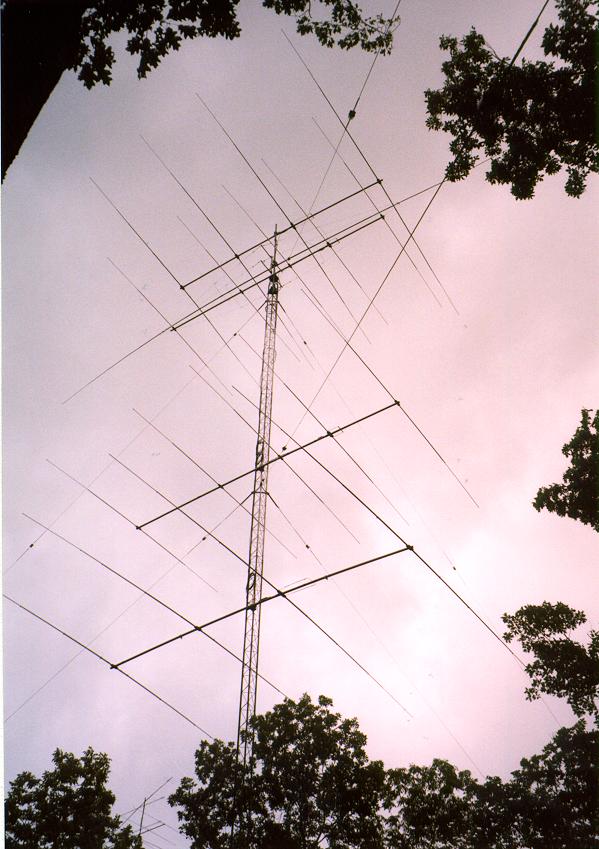

A view of the back tower from near the west guy anchor. The top of the rotating tower is just visible above the treetops. The trees on my lot, and for several hundred feet in every direction, are mostly hardwoods in the 75- to 80-foot range.
